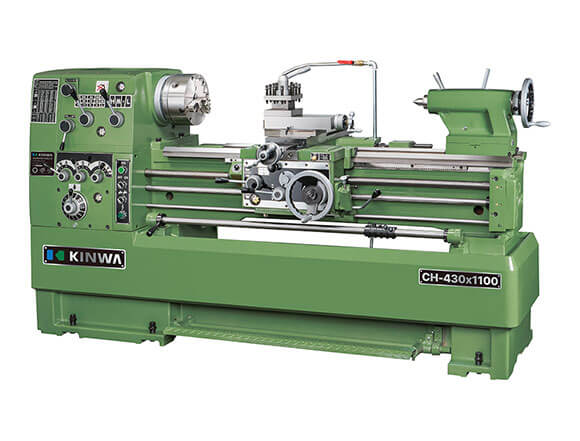

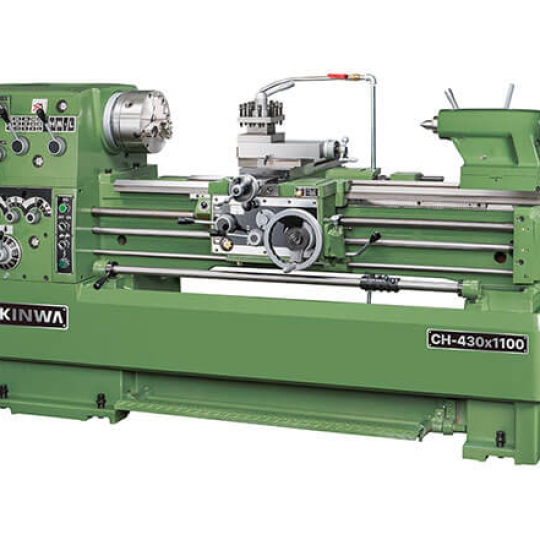

Máy tiện CNC CH-430
-
- Bed is made of meehanite and is hardened and precisely ground, Hardness is HS 70 degree.
- Automatic and manual forced Lubrication pump supplies oil to cross slide and bedways.
- Oil distributor may be adjusted to lubricate bedway, cross slide, or both.
- Starting lever with safety device.
- Emergency foot-operated braking system.
- Thông tin sản phẩm
- Bình luận
| Swing over bed | 432 mm |
| Swing over carriage | 268 mm |
| Swing over gap | 610 mm |
| Width of gap in front of face plate | 150 mm |
| Distance between centers ( A1 - 6, A2 - 6 ) | 767, 1067, 1667mm ( A1 - 6, A2 - 6 ) |
| Width of bed | 300 mm |
| Stroke of tool post | 145 mm |
| Stroke of cross slide | 265 mm |
| Spindle bore | 58 mm ( 78 mm) * |
| Taper of spindle bore & center | MT6 x MT4 |
| Spindle nose | A1 - 6, D1 - 6 ( A2 - 6 ) * |
| Number of spindle speeds | 12 |
| Spindle speed ( 60 HZ ) | ø 58 mm : 35, 52, 75, 110, 160, 230, 330, 490, 650, 950, 1350, 2000 rpm ø 78 mm : 29, 43, 62, 90, 130, 190, 275, 405, 540, 790, 1120, 1650 rpm |
| Spindle bore | 58 mm ( 78 mm) * |
| Taper of spindle bore & center | MT6 x MT4 |
| Spindle nose | A1 - 6, D1 - 6 ( A2 - 6 ) * |
| Number of spindle speeds | 12 |
| Spindle speed ( 60 HZ ) | ø 58 mm : 35, 52, 75, 110, 160, 230, 330, 490, 650, 950, 1350, 2000 rpm ø 78 mm : 29, 43, 62, 90, 130, 190, 275, 405, 540, 790, 1120, 1650 rpm |
| Number of feeds | 36 |
| Range of longitudinal feeds metric | 0.037 ~ 1.04 mm / rev ( P = 6 mm ) 0.035~0.98 mm / rev ( 4 TPI ) |
| Range of cross feeds | Half of longitudinal feeds |
| Leadscrew diameter | 35 mm |
| Leadscrew pitch | 4 TPI , P = 6 mm |
| Range of inch pitches | 2 ~ 72 TPI ( 44 Kinds ) |
| Range of metric pitches | 0.2 ~ 14 mm ( 39 Kinds ) |
| Quill stroke | 170 mm |
| Quill diameter | 60 mm |
| Quill taper | MT # 4 |
| Main motor ( 30 min. ) | 5 HP ( 7.5 HP ) * |
| Coolant pump motor | 1 / 8 HP |
| Height | 1400 mm |
| Floor space | 2000, 2300, 2900 × 1000 mm |
| Weight | 1500, 1600, 1800 kgs |
- Specifications are subject to change without notice.
Standard Equipment & Accessories
- Leveling screws
- Service kits & Tool box
- 9" backplate
- Main motor 5HP / 4P
- Coolant system
- Multi - position length stop
Optional Equipment & Accessories
- enter sleeve MT6 x MT4
- Dead center ( MT4 ) 2 PC
- 7" backplate
- Steady rest
- Follow rest
- Face plate ( 350 mm )
- Turret micro carriage stop
- Taper turning attachment
- 3 - jaw chuck
- 4 - jaw chuck
- Work light
- Rear toolpost
- Main motor 7.5HP / 4P
- Full length splash guard
- Drill attachment
- Spindle bore 78mm ( for CH430 / 530 )
