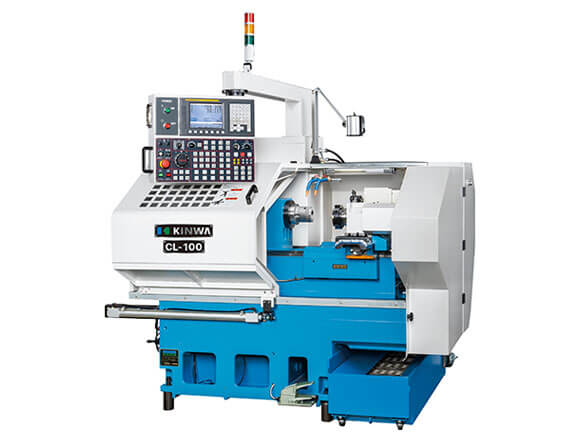

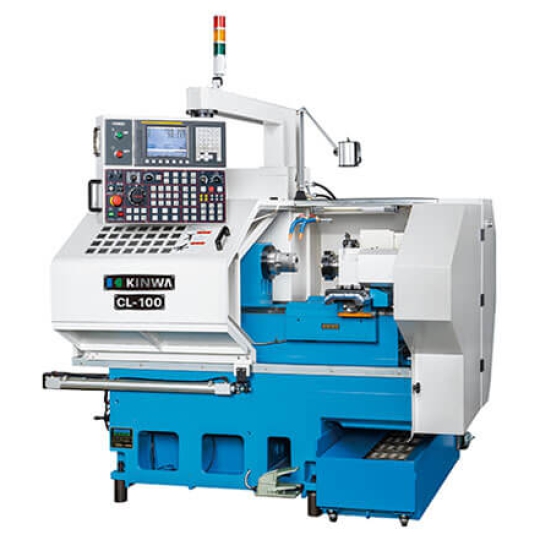

Máy Tiện Chính Xác Hạng Nặng CL-100
-
- Max. swing: Ø420 mm
- Swing over cross slide: Ø420 mm
- Standard turning diameter: Ø350 mm
- Max. turning length: 200 mm (gang-type / V8)
- Thông tin sản phẩm
- Bình luận
| Max. swing | Ø420 mm |
| Swing over cross slide | Ø420 mm |
| Standard turning diameter | Ø350 mm |
| Max. turning length | 200 mm (gang-type / V8) |
| Travel of X-axis | 480 mm (V8) 240 mm (V8+ polygon cutting) |
| Travel of Z-axis | 400 mm |
| Spindle speed | 80~4000 r.p.m. |

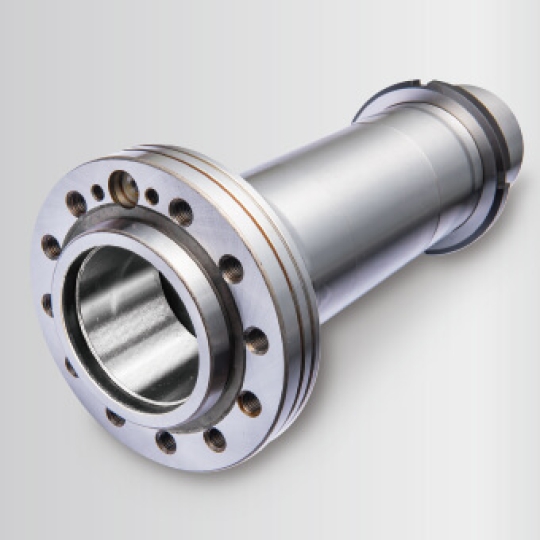

| Spindle nose | A2-5 |
| Spindle bore | Ø55 mm |
| Bar capacity | Ø45 mm |

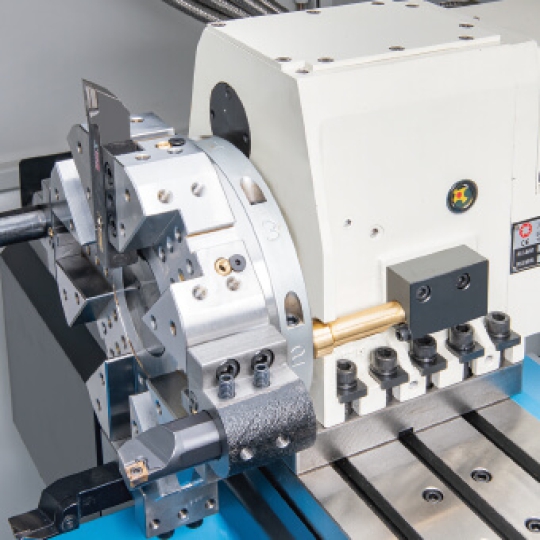

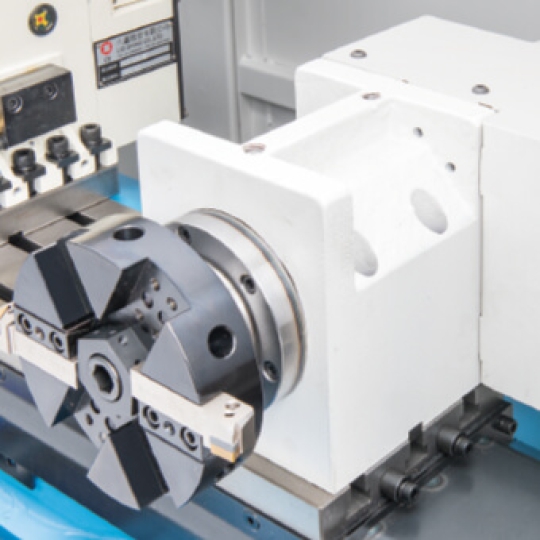

| Type | gang-type / V8 / polygon cutting ( opt.) |
| O.D. tool shank | Ø20 mm, Ø16 mm (polygon cutting) |
| I.D. tool shank | Ø25 mm |
| Spindle motor (15 min./cont.) | βiI8 (14.7 HP /10 HP) |
| Servo motor | X: βiS 8 (1.6 HP) / Z: βiS 8 (1.6 HP) |
| Hydraulic unit motor | 1 HP |
| Coolant pump motor | 1/2 HP |
| Height of machine | 2070 mm |
| Length of machine | 1800 mm |
| Width of machine | 2015 mm |
| Weight of machine | 2300 kg |
- Specifications are subject to change without notice.
