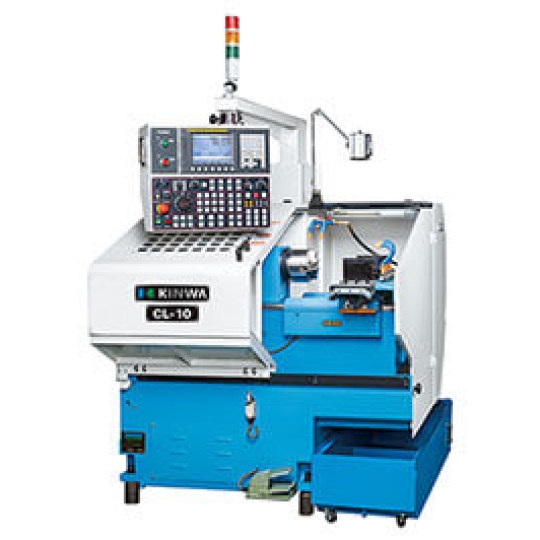

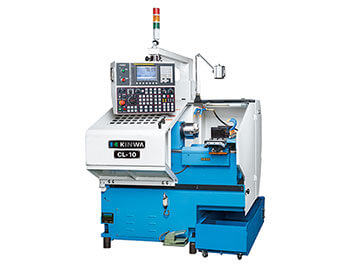

Máy Tiện Chính Xác Hạng Nặng CL-10
-
- Chuck 6", MP 7 - 65
- Swing 320 mm
- Bar capacity 42, 65 mm
- Thông tin sản phẩm
- Bình luận
| Swing over bed | 320 mm |
| Standard turning diameter | 150 mm |
| Standard cutting length | 100 mm |
| X - axis | 480 mm |
| Z - axis | 250 mm |
| Speed | 80 ~ 4000 rpm |
| Spindle nose | A2 - 5 |
| Spindle bearing ID | 90 mm |
| Spindle bore | 50 mm |
| Bar Capacity | 42 mm |

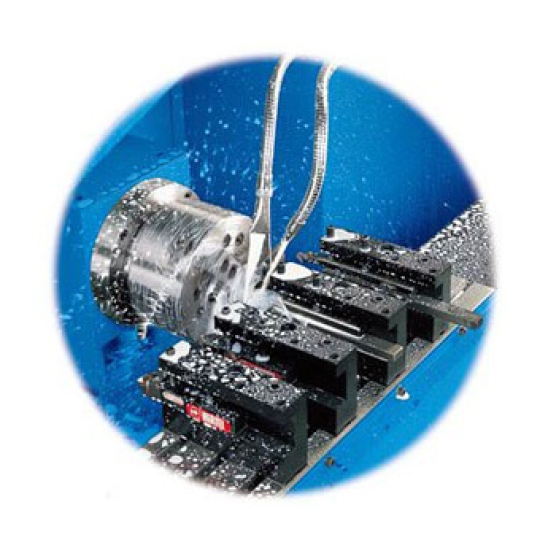

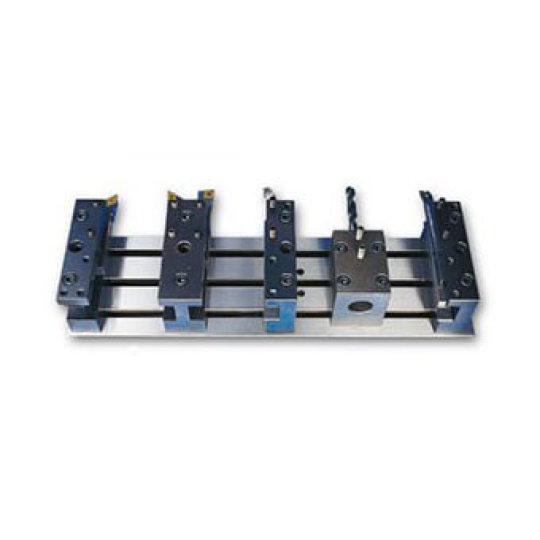

| tools | Gang bed fixed on cross slide |
| OD tool shank | Ø 20 mm |
| ID tool shank ( Max. ) | Ø 32 mm |
| X - axis | 10 m / min |
| Z - axis | 8 m / min |
| Main motor (30 min.) | 10 HP 7.5 kw |
| Servo motor | 1.6 HP 1.2 kw |
| Hydraulic unit motor | 1 HP 0.75 kw |
| Coolant pump motor | 1 / 2 HP 0.37 kw |
| Height of machine | 1900 mm |
| Weight of machine | 2100 kgs |
| Floor space | 1750 x 1900 mm |
- Specifications are subject to change without notice.
