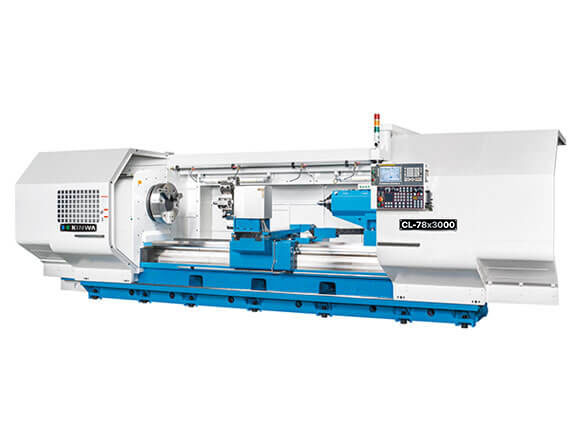

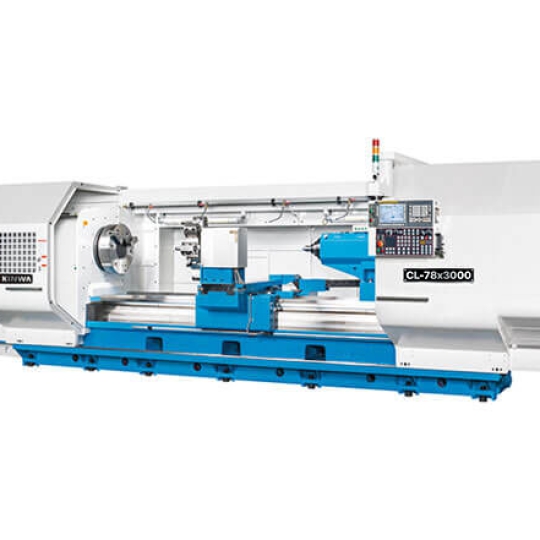

Máy Tiện Chính Xác Hạng Nặng CL-78
-
- Swing 1150, 1500 mm
- Between centers 1000 ~ 6000 mm
- Spindle bore 181, 255, 375, 530 mm
- Spindle motor 60 HP
- Thông tin sản phẩm
- Bình luận
| Swing over bed | 1500 mm |
| Swing over cross slide | 900 mm |
| Distance between centers | 2210, 3210, 4210, 5210, 6210 mm |
| Width of bed | 1000 mm |
| X - axis | 735 mm |
| Z - axis | 2095, 3095, 4095, 5095, 6095 mm |
| Spindle bore | φ 181 mm ( A2 - 15, 6 ~ 650 rpm ) φ 255 mm ( A2 - 15, 6 ~ 650 rpm ) φ 375 mm ( A2 - 20, 4 ~ 500 rpm ) φ 530 mm ( A2 - 28, 2 ~ 300 rpm ) |
| Number of spindle speed range | 2 |
| OD tool shank | V 8 : φ 32 mm H 4 , H 6 ( Option ) |
| ID tool shank ( Max. ) | V 8 : φ 60 mm H 4 , H 6 ( Option ) |
| X - axis | 6 m / min |
| Z - axis | 6 m / min |
| Tailstock stroke | 180 mm |
| Quill diameter | 240 mm |
| Quill tpaer | MT # 6 |
| Main motor (30 min.) | α 40 i ( 60 HP / 50 HP ) |
| Servo motor | X : α 22 i ( 5.3 HP ) Z : α 40 i ( 8 HP ) |
| Hydraulic unit motor | 3 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 7745, 8745, 9745, 10745, 11940 mm |
| Width of machine | 3830 mm |
| Height of machine | 2310 mm |
| Weight of machine | 14260, 16110, 17980, 19850, 21730 kg |
- Specifications are subject to change without notice.
- Swing can be raised according your requirement.
- Distance between center and Z axis travel will be changed because of different spindle bore.
- X axis travel will be changed because of different tool post. Machine length is not including chip conveyor.
- Detail specification depends on quotation.
- Standard or optional depends on quotation.
