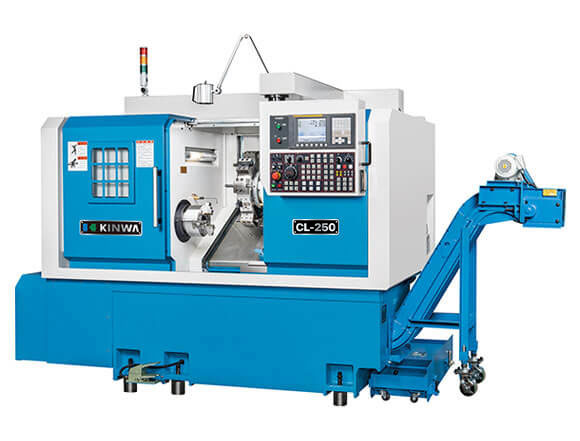

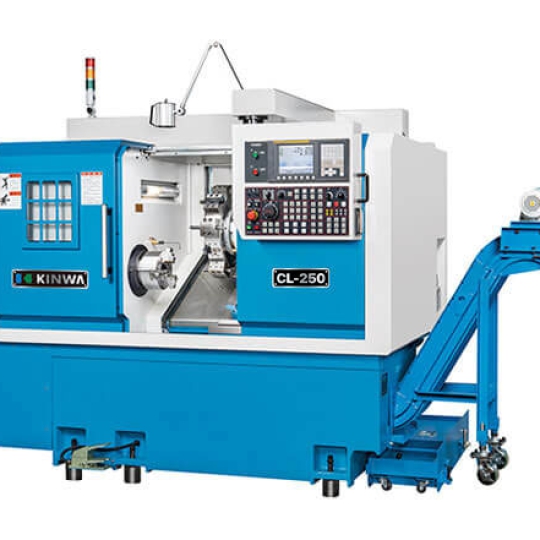

Máy Tiện Chính Xác Hạng Nặng CL-250
-
- Chuck 8", 10"
- Swing 590 mm
- Between Center 580, 1180 mm
- Bar capacity 52, 80 mm
- Spindle motor 25 HP
- Thông tin sản phẩm
- Bình luận
| Swing over bed | φ 590 mm |
| Swing over carriage | φ 380 mm |
| Distance between centers | 580mm |
| Max. turning diameter | φ 450 mm |
| X - axis | 245 mm ( 230 + 20 ) |
| Z - axis | 520 mm |
| Speed | 2200 rpm |
| Spindle nose | A2 - 8 |
| Spindle bore | φ 91 mm |

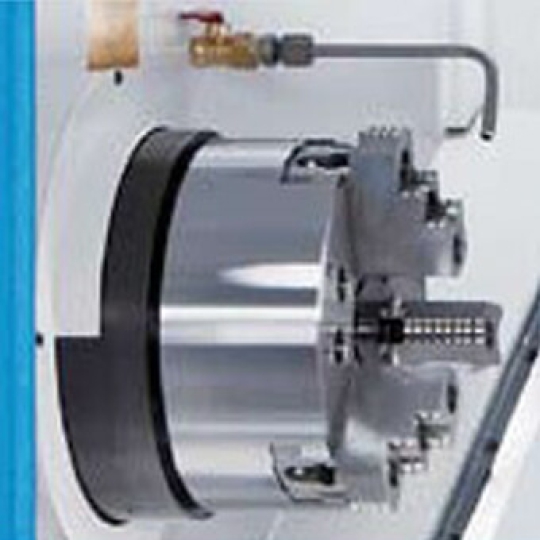

| Chuck | 10" ( φ 80 mm ) |

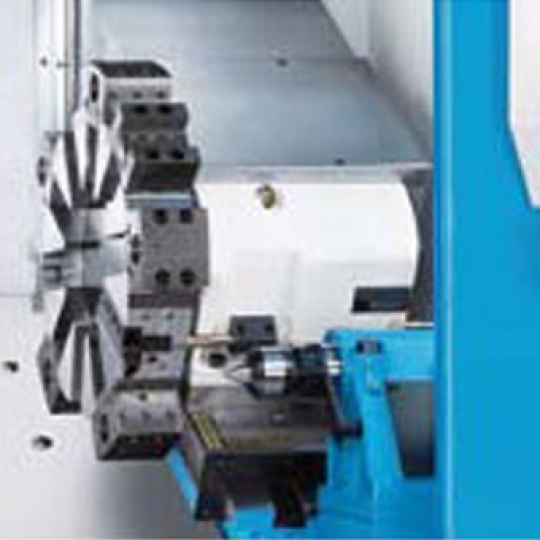

| tools | Vertical 10 - station Servo turret |
| OD tool shank | φ 25 mm |
| ID tool shank ( Max. ) | φ 40 mm |
| X - axis | 16m / min |
| Z - axis | 20m / min |

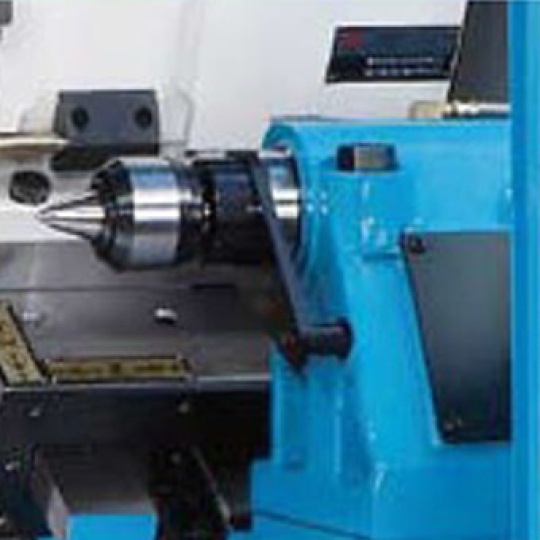

| Tailstock stroke | 480 mm |
| Quill diameter | 75 mm |
| Quill tpaer | MT # 4 |
| Quill stroke | 100 mm |
| Main motor (30 min.) | 25 HP ( βiIP 30 ) |
| Servo motor | X axis : 2.4 HP ( βiS 12 ) Z axis : 3.4 HP ( βiS 22 ) |
| Hydraulic unit motor | 2 HP |
| Coolant pump motor | 1 HP |
| Length of machine | 3455 mm |
| Width of machine | 1770 mm |
| Height of machine | 2000 mm |
| Weight of machine | 3500 kgs |
- Specifications are subject to change without notice.
