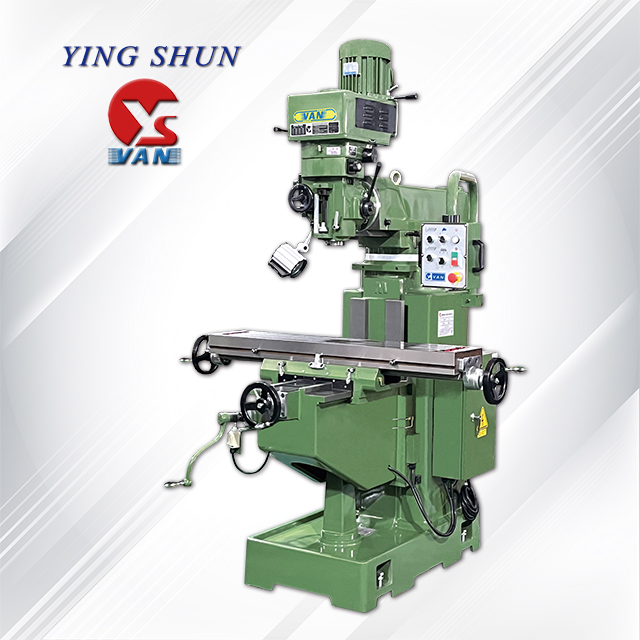

Máy Phay Vạn Năng YSM-18 series Vertical Turret Milling Machine
-
X/Y/Z travel : 800(Opt.900)/426/470mm
Spindle taper : NT40(Ø105)
Spindle motor : 5HP
Hardened ground-X/Y/Z
Square way-Y/Z
- Thông tin sản phẩm
- Bình luận
| Model | Unit | YSM-18SS | YSM-18VC | ||
| Travel | |||||
| Longitudinal travel (M./A.) | mm | 800/700 (Opt. 900/800) | |||
| Cross travel (M./A.) | mm | 426 | |||
| Vertical travel (M./A.) | mm | 470 | |||
| Slideway X/Y/Z | type | △ / □ / □ | |||
| Quill travel | mm | 140 | |||
| Overarm travel | mm | 540 | |||
| Overarm swivel | degree | 360 | |||
| Quill swivel (R&L)/(F&B) | degree | ±45/Fixed(Opt.±45) | |||
| Dist. from spindle nose to table | mm | 90-560 | |||
| Spindle centerline to column | mm | 85-625 | |||
| Table | |||||
| Dimension | mm | 1270x254 (Opt. 1370x254) | |||
| T-slots (Width x No. x Pitch) | mm | 16x3x63 | |||
| Max. table load | kg | 200 | |||
| Spindle | |||||
| Milling head | type | 10/20 Steps | Inverter | ||
| Speed | 60Hz | rpm | 70-3350(10) | 55-3600 | |
| 50Hz | rpm | 58-2780(10) | |||
| rpm | 58-5560(20) | ||||
| Vertical feeds | mm/rev | 0.04/0.08/0.15 | |||
| Taper | type | NT40 | |||
| Quill Diameter | mm | 105 | |||
| Motor | |||||
| Main spindle | HP | 5 | |||
| Z-axis elevation | HP | 1/2 | |||
| Feedrate | |||||
| Z-axis speed | mm/min | 345 | |||
| Machine | |||||
| Space(L x W x H) | mm | 1920x2530x2420 | |||
| Packing dimension(L x W x H) | mm | 1620x1830x1960 | |||
| Net Weight | kg | 1500 | |||
| Gross Weight | kg | 1650 | |||
