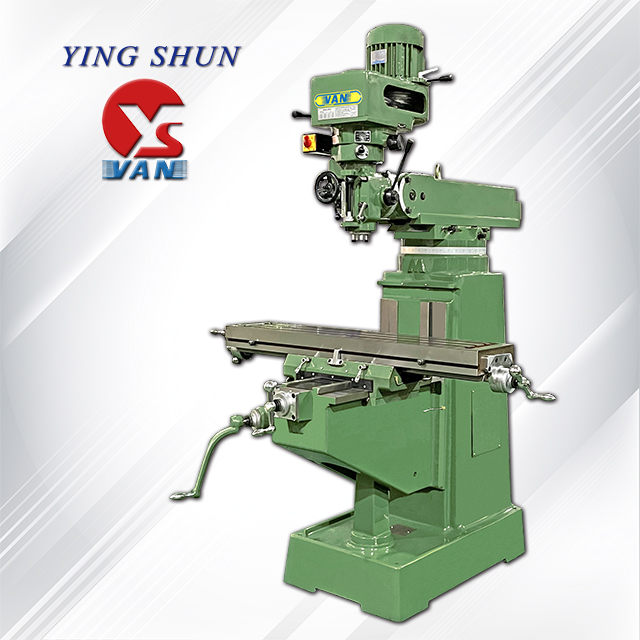

Máy Phay Vạn Năng YSM-16 series Vertical Turret Milling Machine
-
X/Y/Z travel : 850(Opt.950)/410/400mm
Spindle taper : R8/NT30(Opt.NT40)(Ø85)
Spindle motor : 3HP
Hardened ground-X/Y
Square way-Y
- Thông tin sản phẩm
- Bình luận
| Model | Unit | YSM-16SS | YSM-16VC | |
| Travel | ||||
| Longitudinal travel (M./A.) | mm | 850/750 (Opt. 950/850) | ||
| Cross travel (M./A.) | mm | 410 | ||
| Vertical travel (M./A.) | mm | 400 | ||
| Slideway X/Y/Z | type | △ / □ / △ | ||
| Quill travel | mm | 127 | ||
| Overarm travel | mm | 550 | ||
| Overarm swivel | degree | 360 | ||
| Quill swivel (R&L)/(F&B) | degree | ±45/±45 | ||

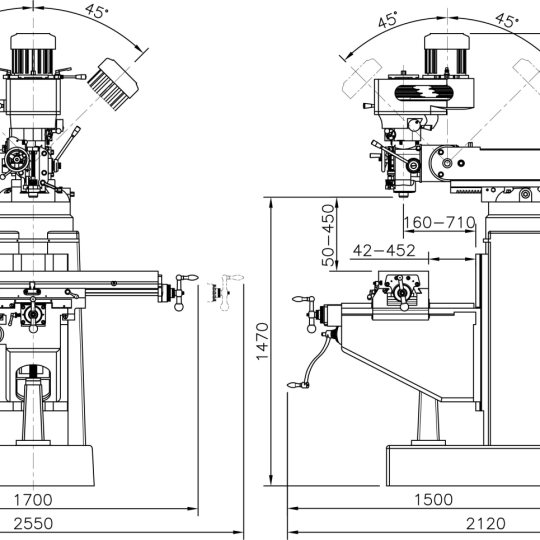

| Dist. from spindle nose to table | mm | 50-450 | ||
| Spindle centerline to column | mm | 160-710 | ||
| Table | ||||
| Dimension | mm | 1270x254 (Opt. 1370x254) | ||
| T-slots (WidthxNo.xPitch) | mm | 16x3x63 | ||
| Max. table load | kg | 200 | ||
| Spindle | ||||
| Milling head | type | 8/16 Steps | Inverter | |
| Speed | 60Hz | rpm | 80-2700(8) | 55-3600 |
| 50Hz | rpm | 68-2280(8) | ||
| rpm | 68-4560(16) | |||
| Vertical feeds | mm/rev | 0.04/0.08/0.15 | ||
| Taper | type | NT 30 or R8 (Opt. NT40) | ||
| Quill Diameter | mm | 85 | ||
| Motor | ||||
| Main spindle | HP | 3 | 5 | |
| Machine | ||||
| Space(LxWxH) | mm | 2120x2550x2320 | ||
| Packing dimension(LxWxH) | mm | 1660x1800x1910 | ||
| Net Weight | kg | 1100 | ||
| Gross Weight | kg | 1200 | ||
