KF5600C SeriesNext-generation High-speed Machining Center

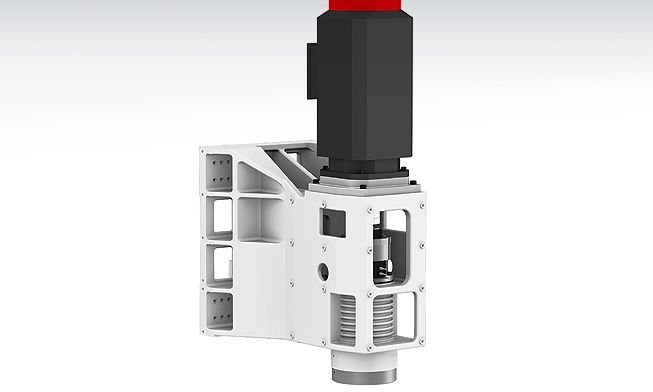

Diverse spindle structure (direct-connection: 8K, 12K)
Increases strength through structural analysis
Machining area expanded to best-in-class 635mm Z-axis travel
Expands machining domain with y-axis 560mm design
Shortens not-cutting time with rapid feeds (40/40/36m/min.)
Features
- Diverse spindle structure (direct-connection: 8K, 12K)
- Increases strength through structural analysis
- Machining area expanded to best-in-class 635mm Z-axis travel
- Expands machining domain with y-axis 560mm design
- Shortens not-cutting time with rapid feeds (40/40/36m/min.)
Specifications
| Description | Unit | KF5600C(STD) | KF5600C(OPT1) | KF5600C(OPT2) |
|---|---|---|---|---|
| Table Size | mm | 1250×560 | 1250×560 | 1250×560 |
| Max. Load Capacity | kg | 1,000 | 1,000 | 1,000 |
| Spindle Driving Method | – | Direct | Direct | Direct |

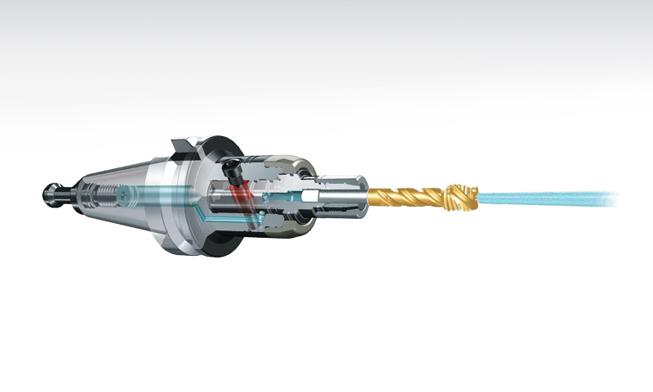

| Spindle Taper | – | BBT40 | BBT40 | BBT40 |
| Spindle RPM | r/min | 8,000 | 8,000 | 12,000 |
| Spindle Power | kw | 15/11 | 18.5/11 | 18.5/11 |
| Spindle Torque | N.m | 286/143 | 118/70 | 118/70 |
| Travel(X/Y/Z) | mm | 1100/560/635 | 1100/560/635 | 1100/560/635 |
| Rapid Feed Rate(X/Y/Z) | m/min | 40/40/36 | 40/40/36 | 40/40/36 |
| Slide Type | – | LM | LM | LM |

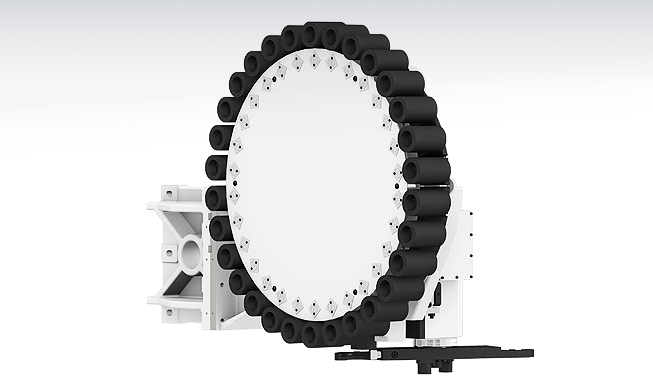

| No. of Tools | EA | 30 | 30 | 30 |
| Tool Change Time
(Chip To Chip) |
sec | 3.2 | 3.2 | 3.2 |
